WAVIX-AI non-intrusive mixed traffic radar counter WAVIX_MULTIMODAL_RADAR_COUNTER WAVIX-AI_COUNT_PEDESTRIAN_CYCLIST_VEHICLE MOBILE_COUNTER_RADAR NON_INTRUSIVE_RADAR_COUNTER
MULTI range

WAVIX-AI Multimodal Radar Traffic Counter

A non-intrusive multi-modal counting system for pedestrian, cyclist, and vehicle traffic using smart radar technology

Benefits
  • Mixed traffic counting solution to measure transportation trends
  • Classification by mode: pedestrians, bicycles, and vehicles
  • Smart radar technology
  • Easy, non-intrusive installation
  • Speed and direction detection

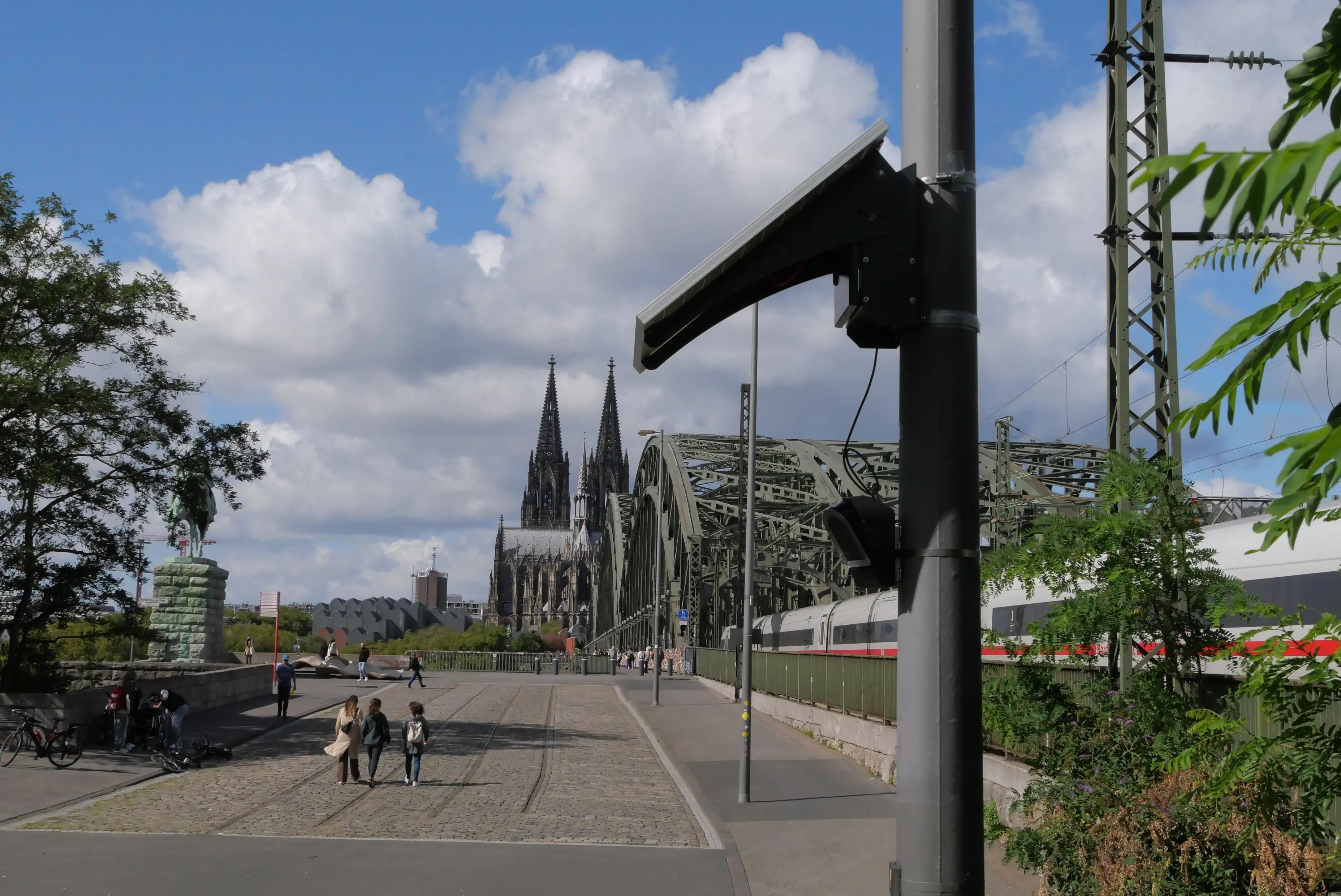

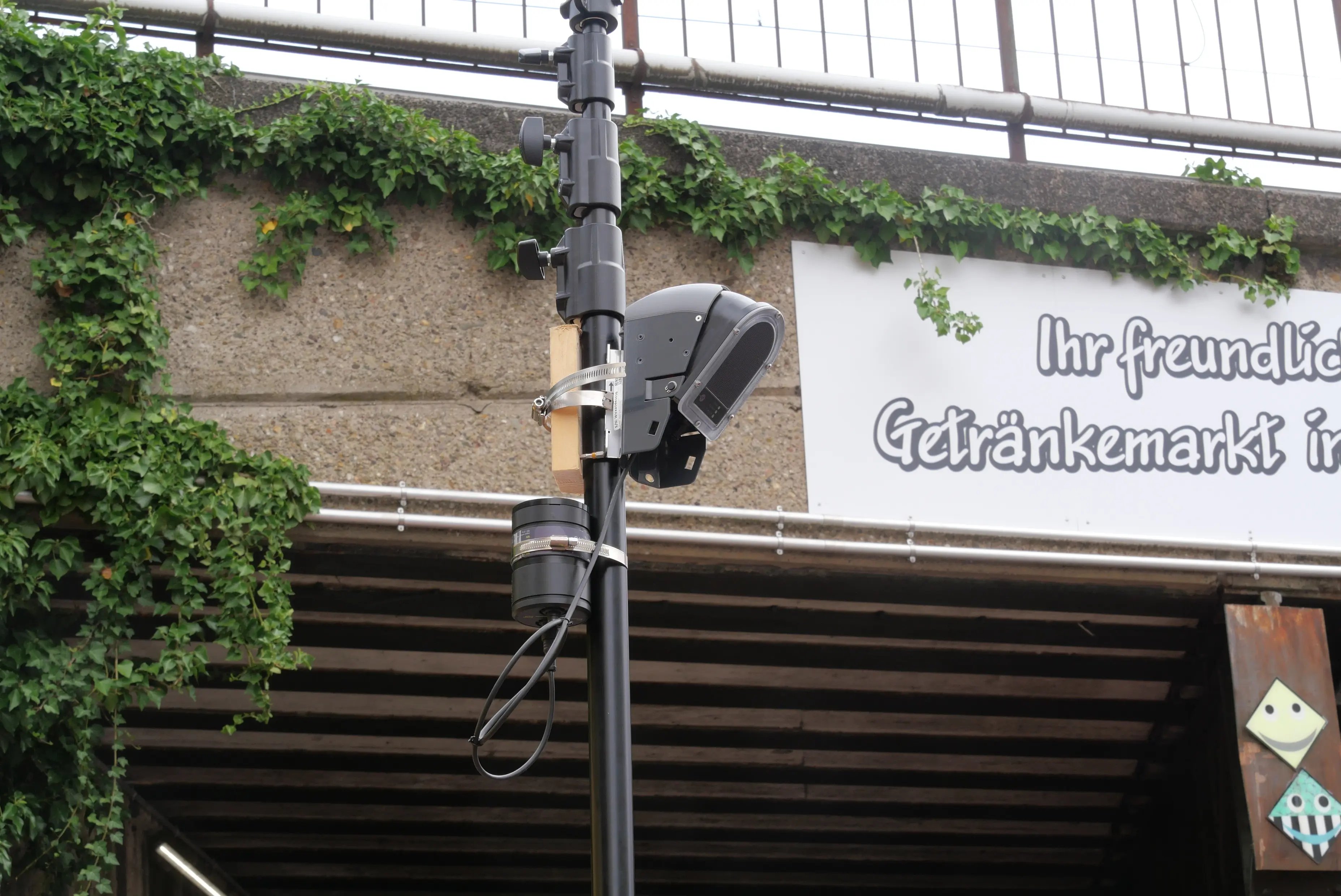

  • Permanent or mobile counting
  • GDPR compliant
  • Durable design to adapt to any type of environment
See complete description
Ask for a quote Add to my favorites
This product will be removed from your favorites. Would you like to continue?
Cancel Remove from my list
Done! This solution is now on your favorites list.
Back See my list

Full description of the WAVIX-AI smart multimodal radar counter

The WAVIX-AI is the first non-intrusive mixed traffic counter in the Eco-Counter range. Detect, classify, and track a large number of active mobility users simultaneously. Obtain accurate and reliable traffic indicators. Use the WAVIX-AI for permanent or mobile counting projects.

How the WAVIX-AI radar counter works

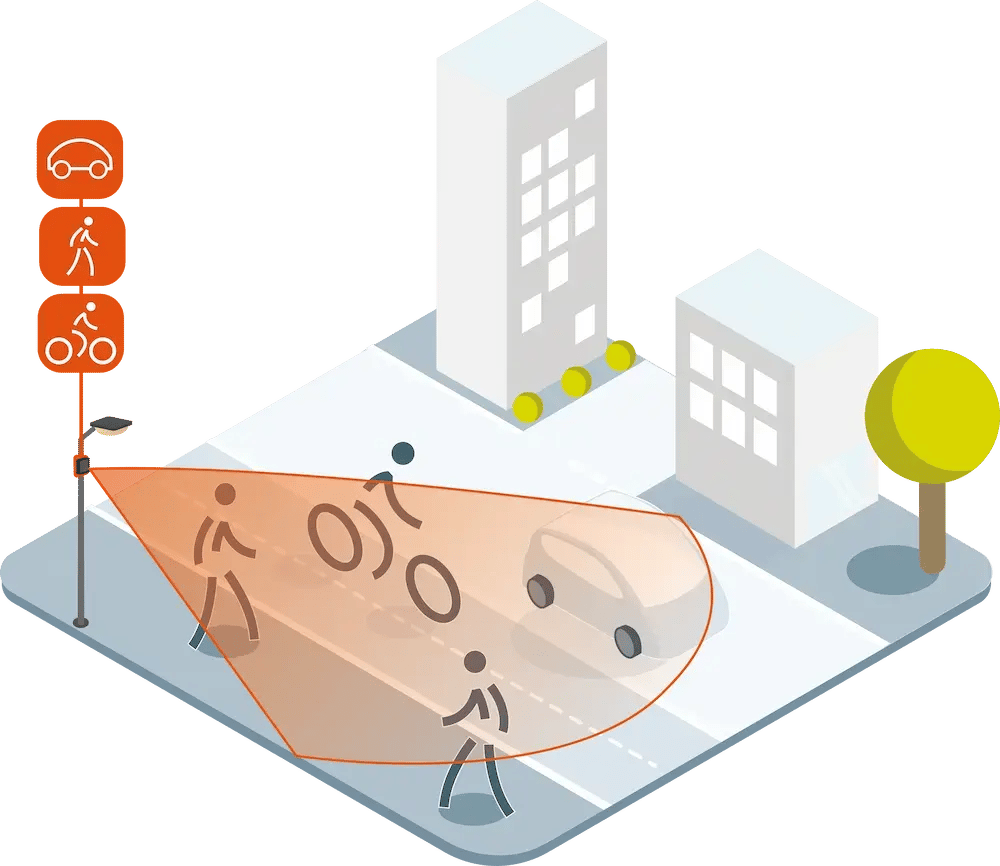

This counter uses radar technology to accurately measure the volume, mode, speed, and direction of different users. GDPR-compliant, it captures neither images nor personal data. The counter processes the information directly and transmits the data via a simple and secure interface.

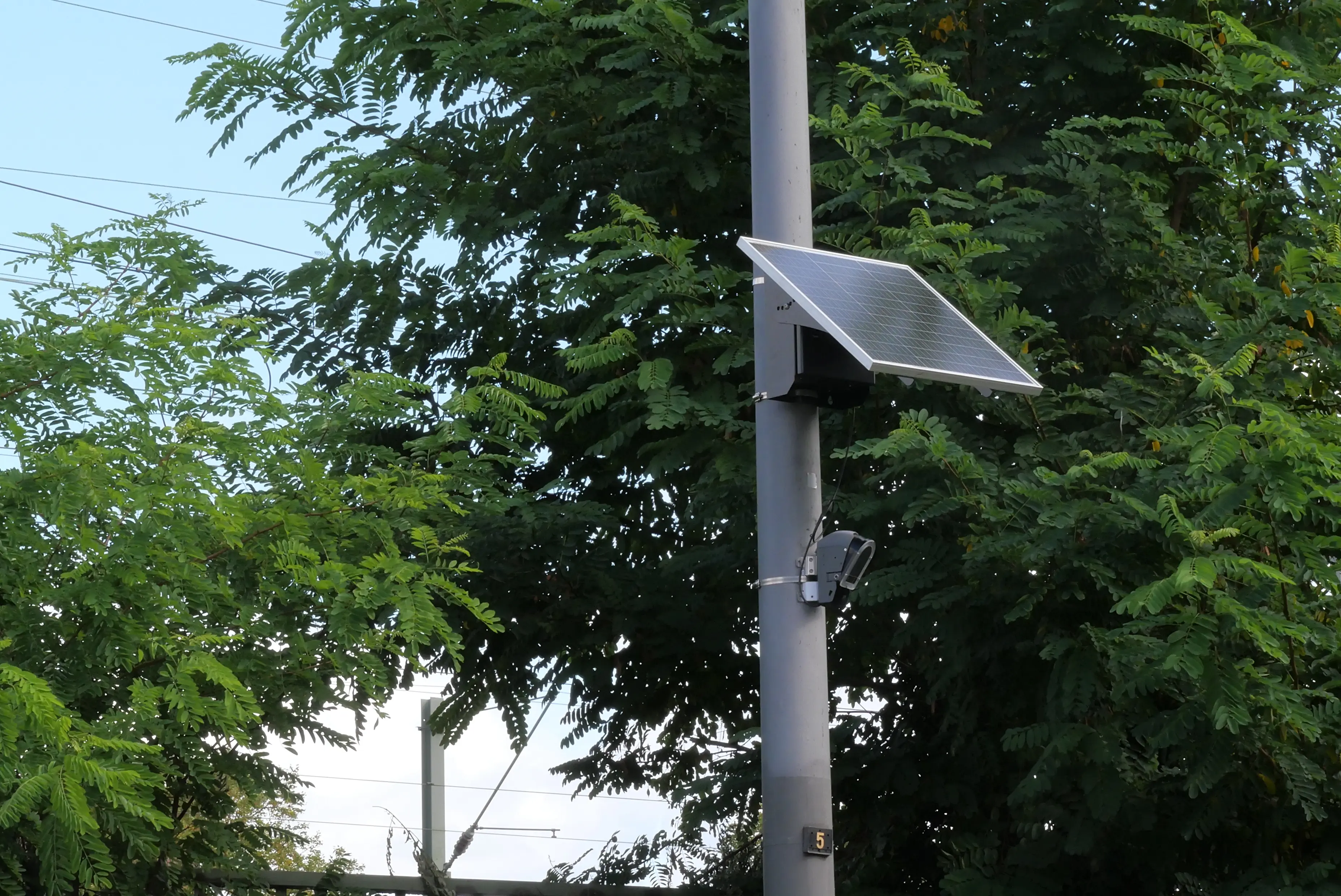

This counter measures active and motorized modes and is updated remotely. Its built-in calibration makes it a tool that operates efficiently and is quickly ready to use. This multimodal counting solution is powered either by solar panel or the grid. Installed at a height of 8.2 ft (2.5 m) to 11.5 ft (3.5m) , its compact size allows it to blend discreetly into any landscape.

Comprehensive solution for tracking mobility flows

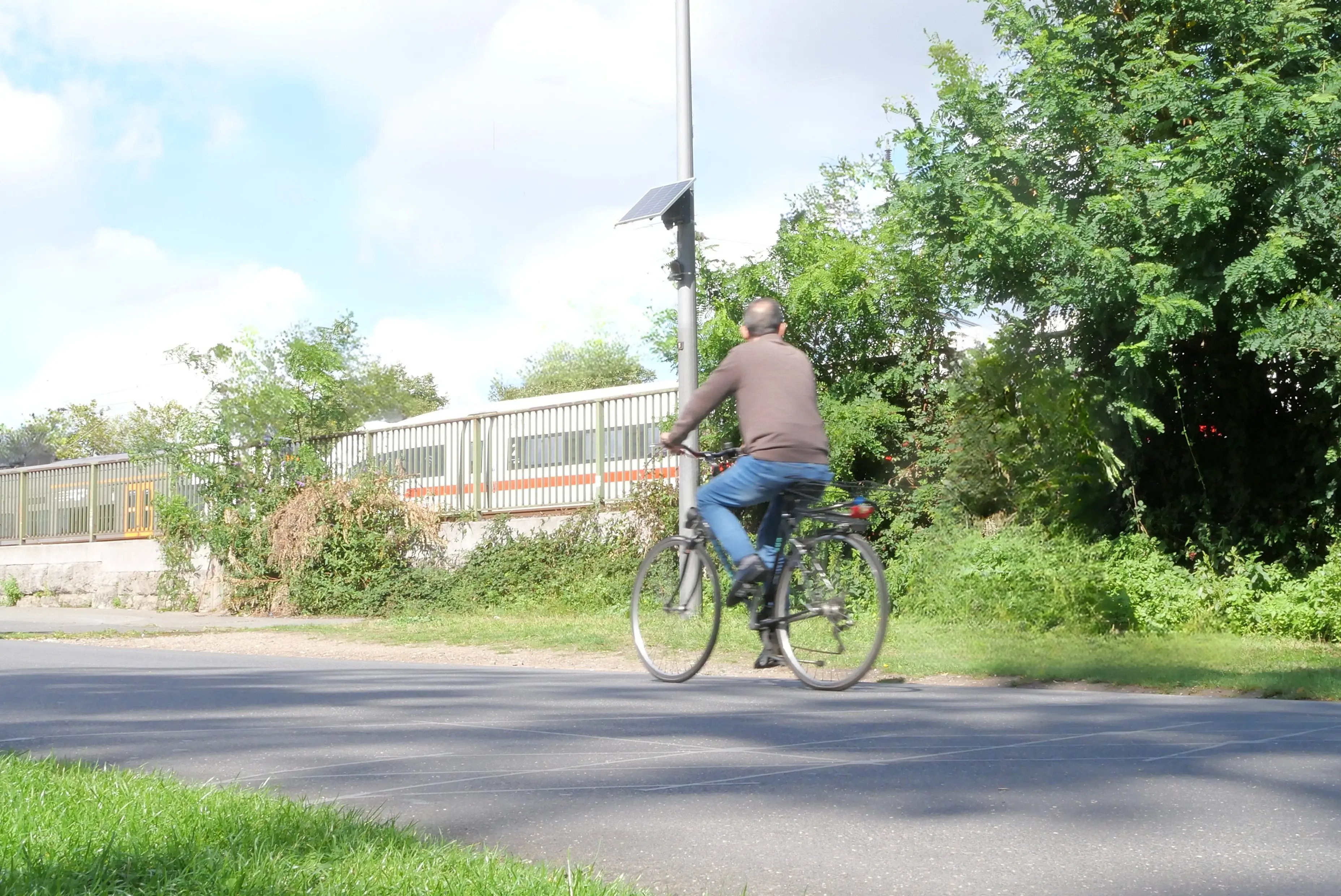

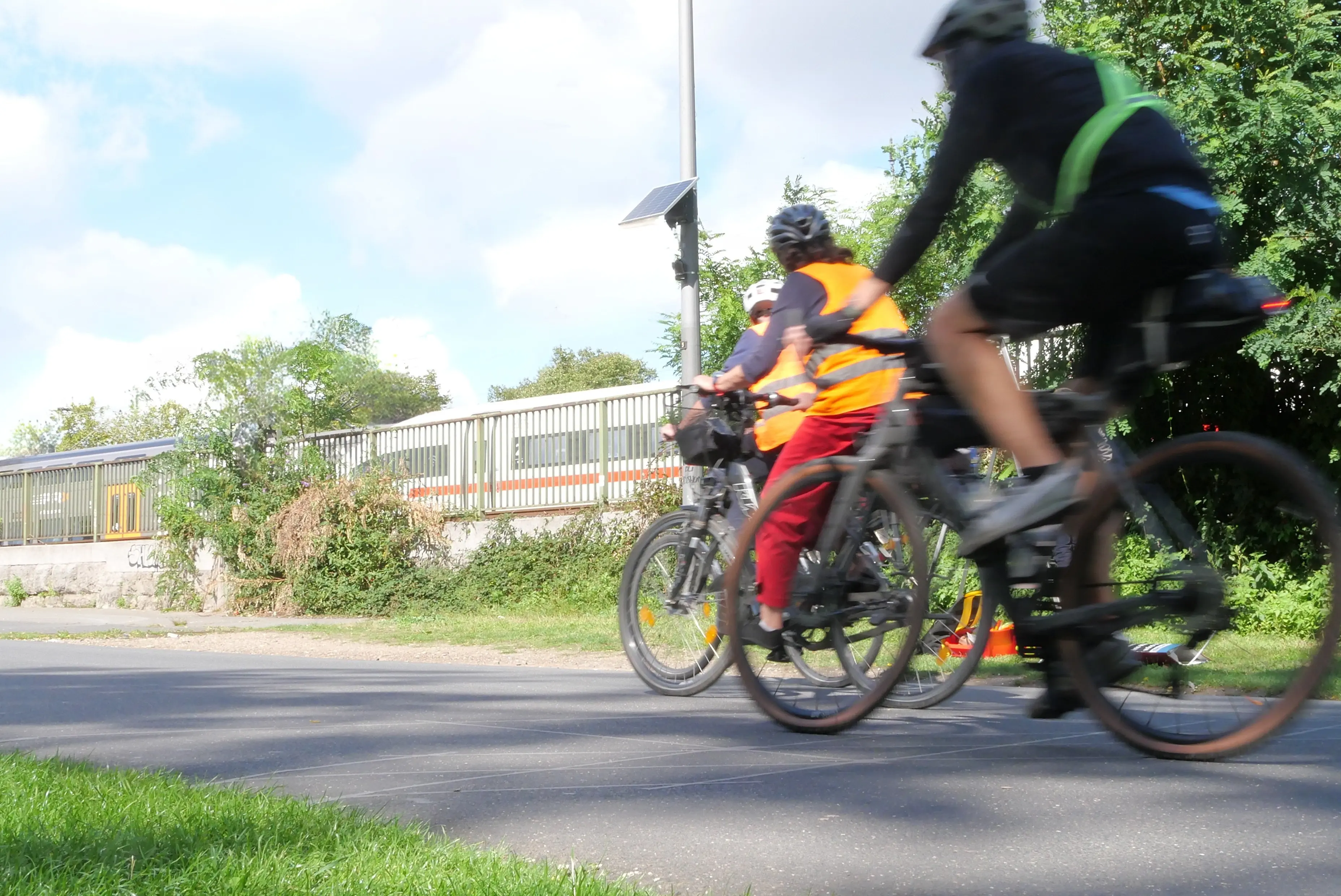

The WAVIX-AI multimodal radar counter provides reliable metrics on traffic volumes in mixed traffic zones. Obtain mode share metrics for bicycles, pedestrians, and vehicles. Compare peak traffic times and usage patterns.

Non-intrusive radar for all environments

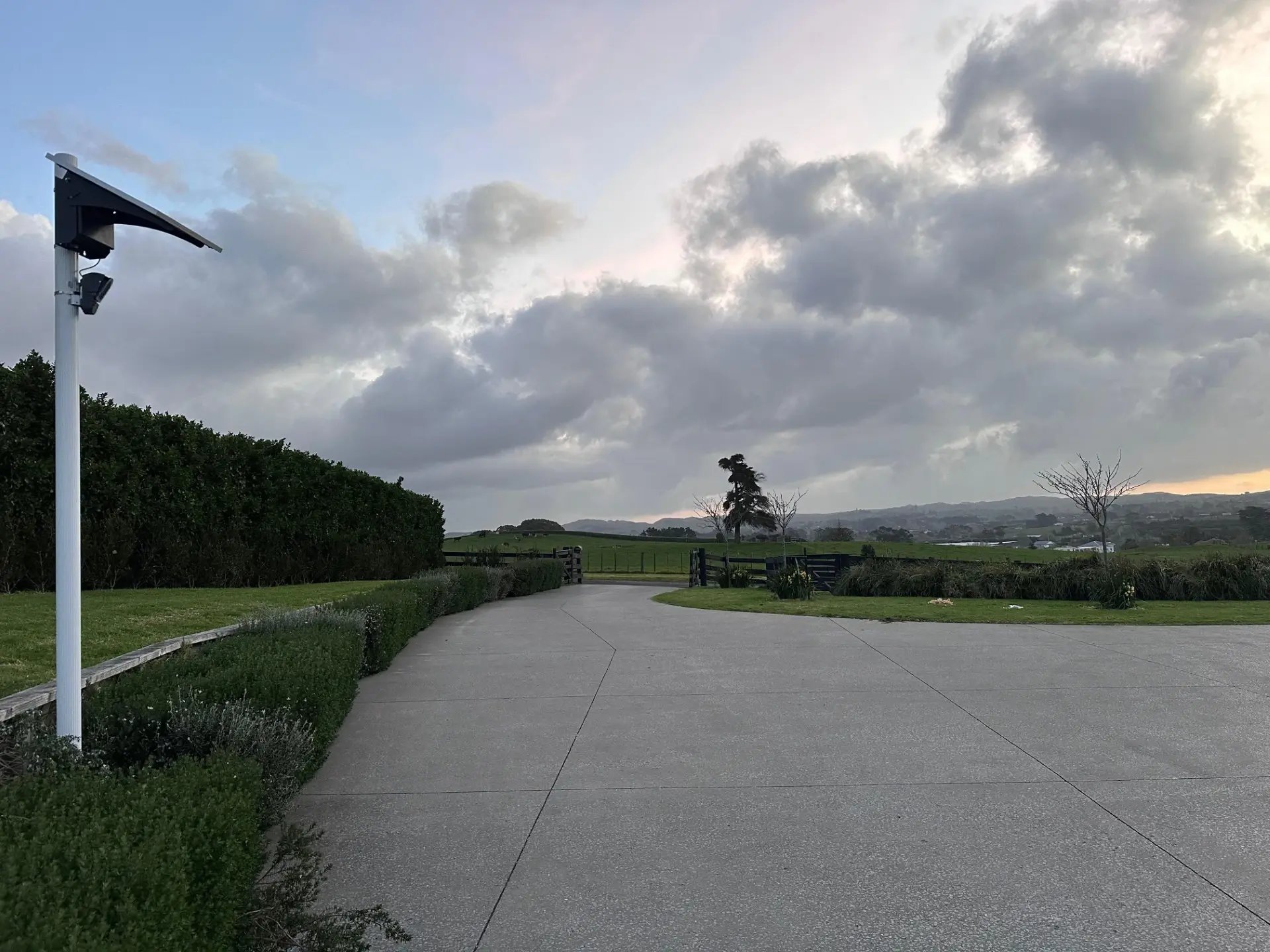

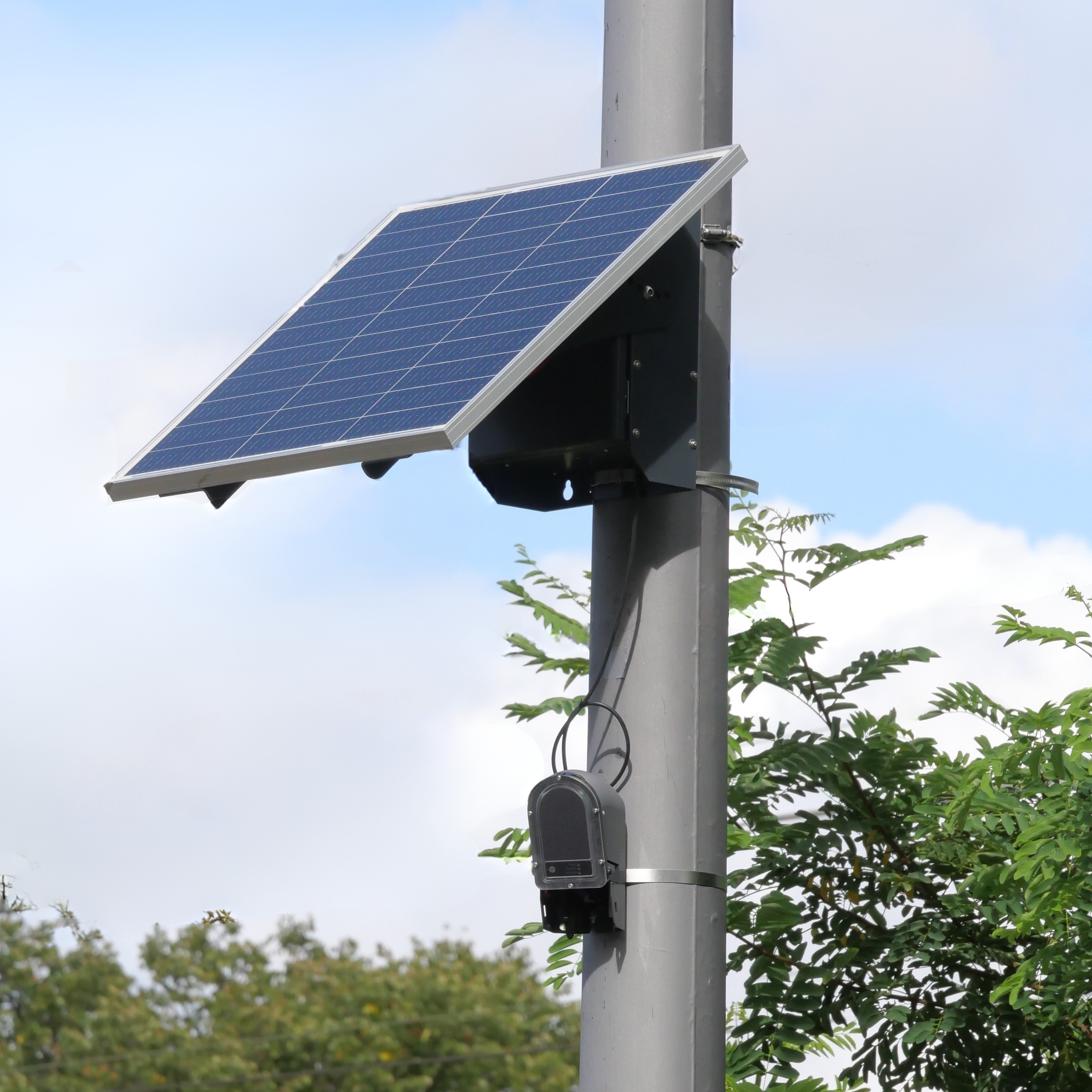

Compact, energy-efficient, lightweight, and easy to deploy, our radar counter is designed to adapt to any environment. I can be powered by a solar panel, giving it extra operating flexibility.

GDPR-compliant counting technology

The radar sensor performs real-time tracking to transmit only counting, speed, and direction data. No images or personal data are captured or transmitted.
Specifications
+
Dimensions:   8.4 x 3.5 x 5.7 in (21.23 x 9.0 x 14.53 cm) (H x W x D)
Weight:   2.6 lbs (1.2 kg)
Operating temperature:   -4 to 122°F (-20°C to +50°C)
Waterproof rating:   IP 67 / IK 09
Memory:   12 months of aggregated data
Installation height:   between 8.2 ft (2.5 m) and 11.5 ft (3.5 m)
Range:       up to 33 ft (10 m)



Client testimonials
Tanya Cusenza, marketing manager for the Presidio Trust

"The counting system will allow us to understand the number of visitors to the new park, as well as seasonal visitation patterns. This data will help us determine the best ways to ...manage and market Presidio Tunnel Tops. "
Read more
See the case study
Maureen Gaffney, Interim Executive Director at Napa Valley Vine Trail Coalition

“The count data is really inspiring. The way the information is presented (in Eco-Visio) – by day of week, user, busiest day – is so well and professionally presented.”
Read more
See the case study
City of Montréal

"The data is a real decision-making tool. They help us to plan better development projects, adapted to the observed traffic. They provide a greater understanding of the ...distribution of visitor numbers...to support the services offered in the park."
Read more
See the case study
AdobeStock_260220621
Case study

Presidio Tunnel Tops Park in San Francisco, California was created after the highway leading to the Golden Gate Bridge was replaced by tunnels. From day one, the park’s marketing manager wanted to understand how successful the new landmark was. To support that goal, Eco-Counter solutions were installed to provide long-term insights and guide informed decision-making.

 See the case study
AdobeStock_85747125 (1)-3
Case study

The Napa Valley Vine Trail is a popular 18.5 mile (and counting!) multi-use trail in Napa, California. Pedestrians and cyclists along the route are counted and differentiated, and their direction of travel is also recorded. This data helps the trail's coalition understand how the trail is used, plan new developments, and secure funding for expansion.

 See the case study
MONTREAL-SKYLINE
Case study

Discover how the City of Montreal manages one of the city's most important green spaces: Mount Royal Park. Visitor data is used for many reasons, from measuring winter ski and snowshoe use to measuring bicycle traffic volumes in the summer. Discover the Eco-Counter solution they used to make their park management easier.

 See the case study

Frequently asked questions

How do I produce an annual traffic report?

Our Eco-Visio data analysis platform has been designed to be as ergonomic as possible, enabling you to easily edit any type of data report.

However, if you'd like further advice, we offer webinars on specific topics such as report editing. Contact us to find out more!

How do I keep my counter in good working order?

An occasional visit to the counting site allows you to check that everything is in place, or that any work has not affected the installation.

Our Eco-Visio software also enables you to monitor data remotely and check the remaining charge on your batteries.

How do I know if my counter is properly installed?

Our Eco-Link Evo mobile application lets you test your counter. Don't hesitate to call our support team to check that everything is working properly.

Can't find the answer to your question? Don't hesitate to ask us directly!
