CITIX range

CITIX-AI Evo

Artificial intelligence traffic monitoring solution for dense and multi-modal environments.

Benefits
  • Multimodal counter: pedestrians, scooters, cyclists, motorized two-wheelers, cars, vans, trucks and buses
  • Long-range and high accuracy
  • Powered by artificial intelligence
  • Scalable solution
  • Privacy and GDPR compliant
See complete description
Ask for a quote Add to my favorites
This product will be removed from your favorites. Would you like to continue?
Cancel Remove from my list
Done! This solution is now on your favorites list.
Back See my list

Complete description

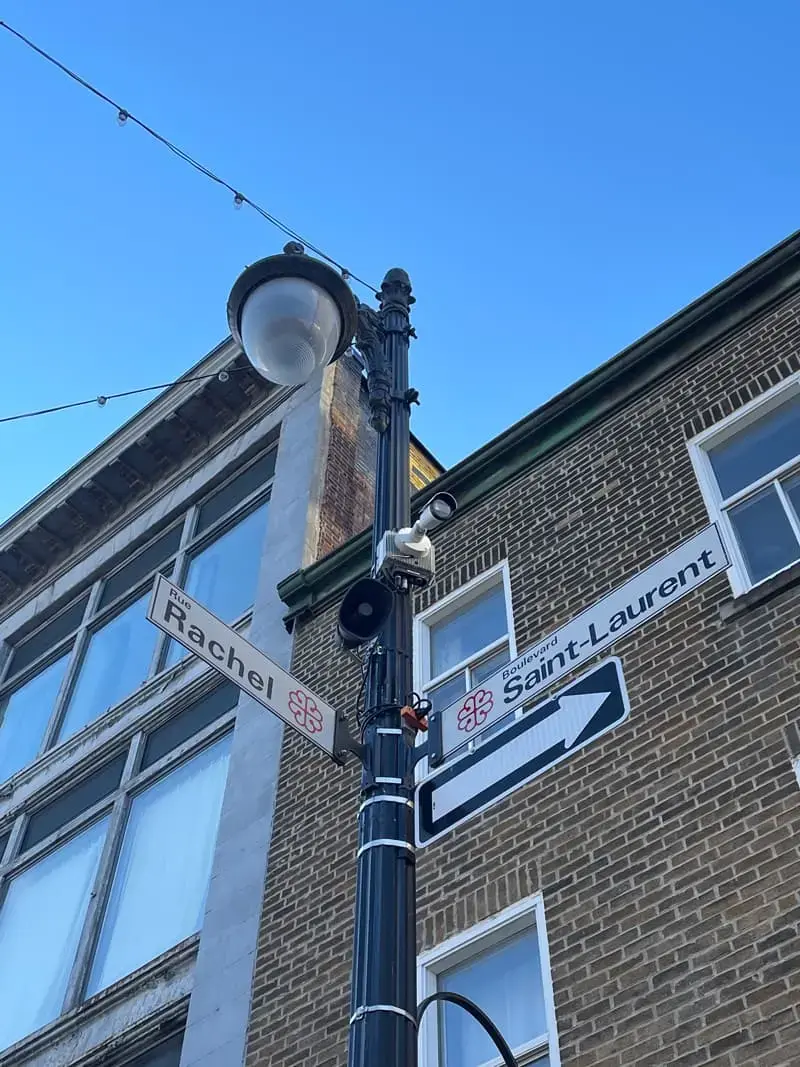

The CITIX-AI Evo is the ideal multimodal counting solution for large mixed traffic areas. With artificial intelligence and a high-precision sensor, it provides user volumes by mode (8 in total) along with their direction. In the urban environment, it counts users and measures traffic flows in dense areas such as city squares, complex intersections, or low-traffic zones.
Track changes in the modal share of each user type with precision and identify near misses and high-risk areas. This knowledge enables better infrastructure adaptations and leads to more equitable distributions of urban space.

How this artificial intelligence counter works

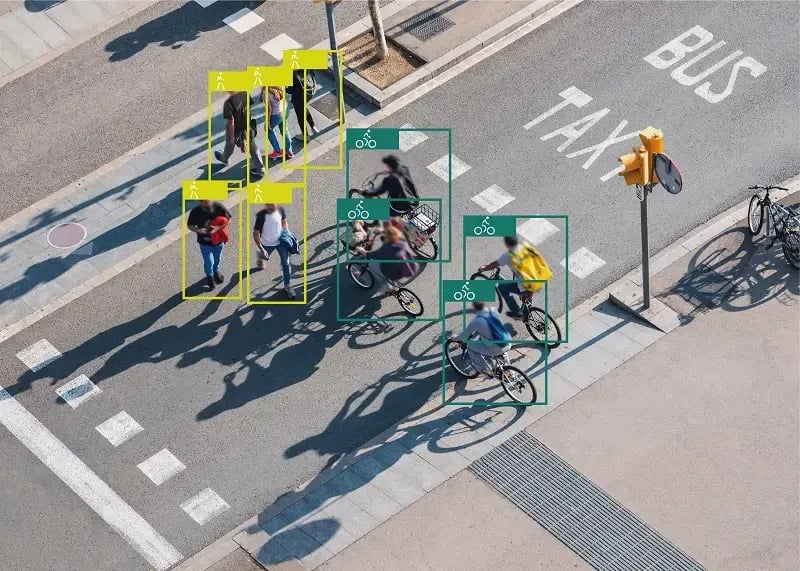

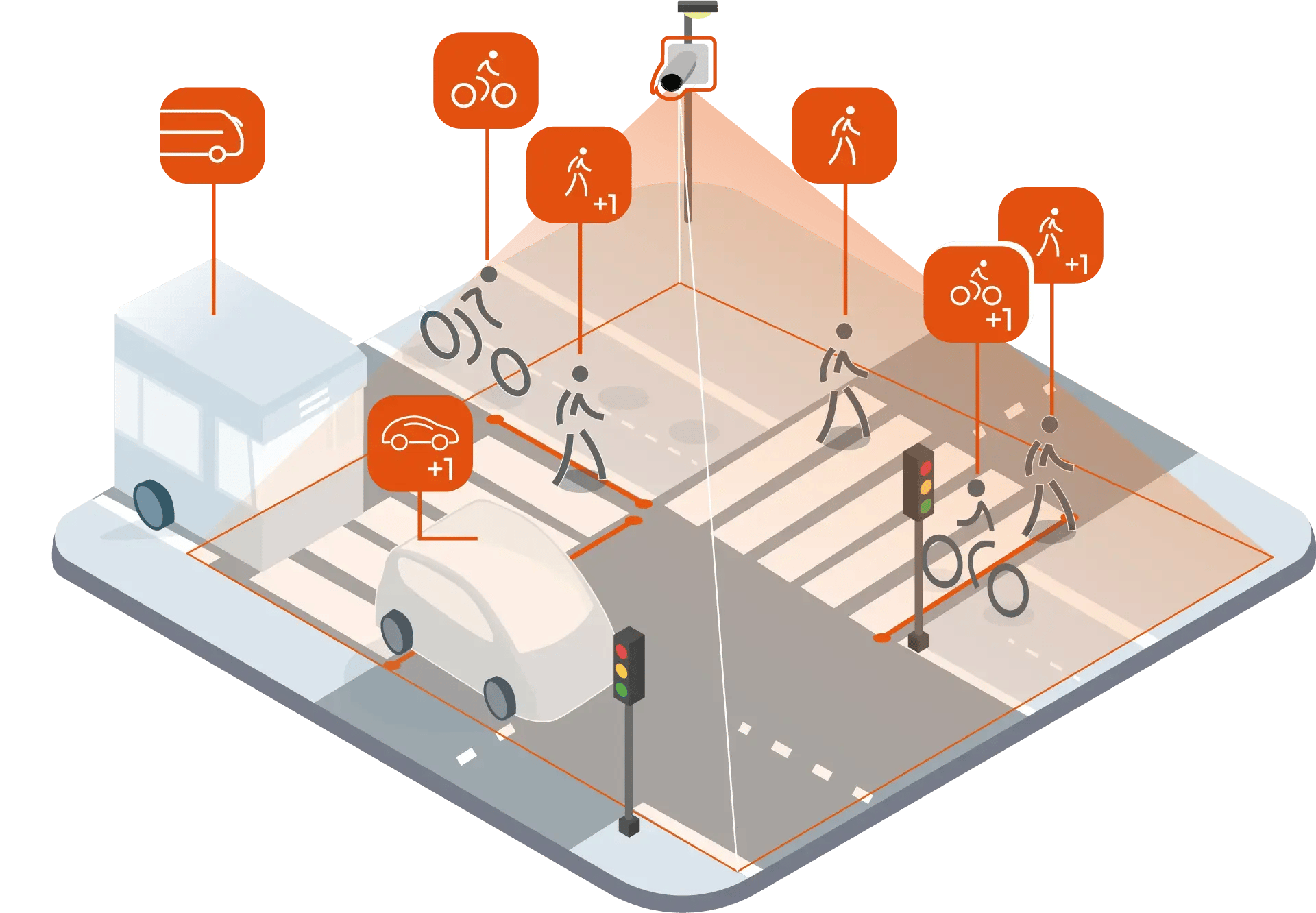

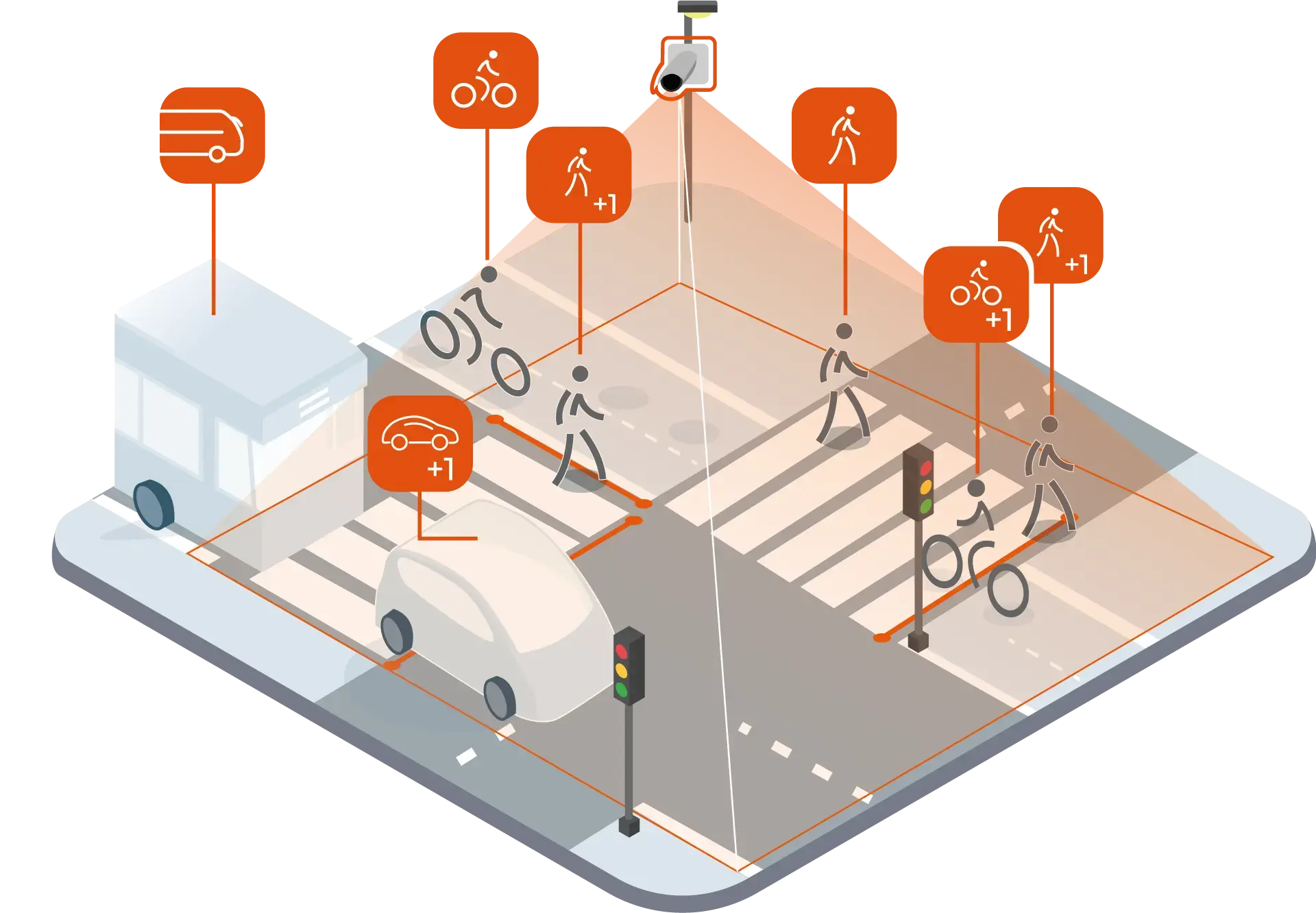

The CITIX-AI Evo counting system uses artificial intelligence to understand user flows in your area. Count and discover the direction of flow for the following 8 user classes: pedestrians, scooters, cyclists, motorized two-wheelers, cars, vans, trucks, and buses.

Cover facilities of up to 30 meters and access your count data online via Eco-Visio. Log in and connect to an accurate, intuitive data analysis platform. Share data with your partners and carry out detailed analyses based on street-level data.

The system has been designed with privacy as a priority and complies with the GDPR. No images are recorded; image processing takes place live. Data is anonymous and secure, and you are the sole owner.



Precise, reliable, and discreet

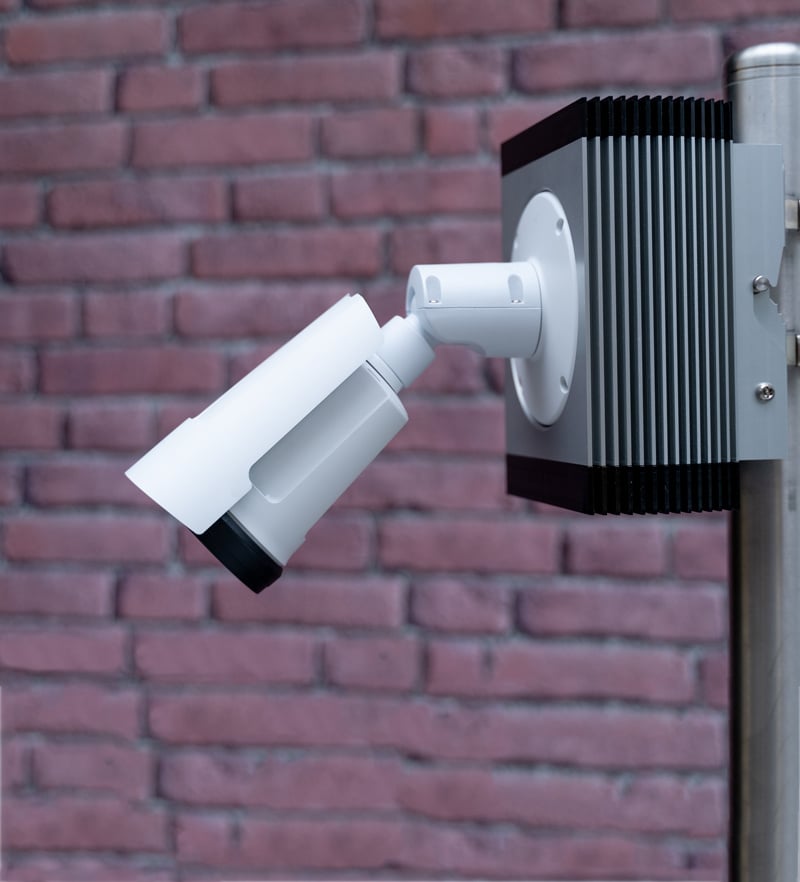

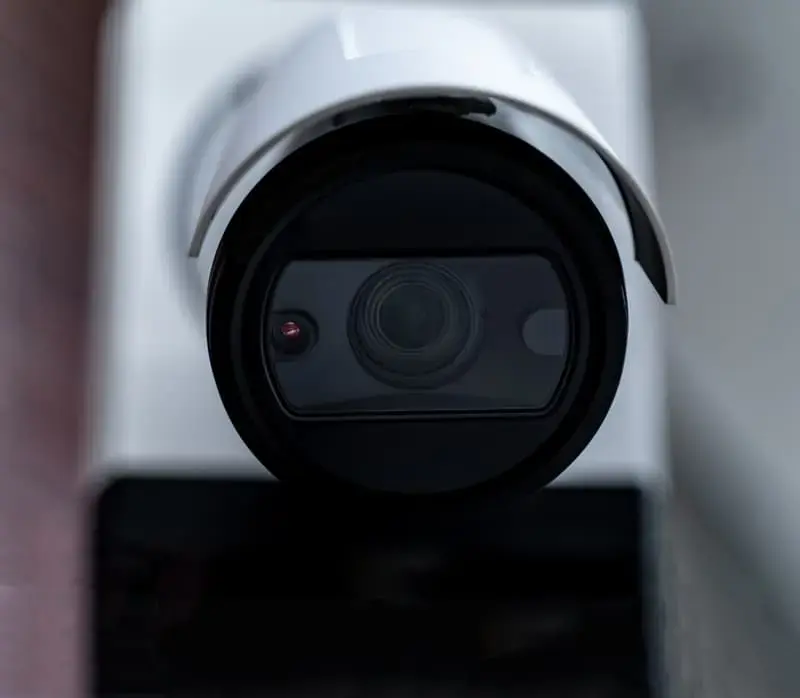

The CITIX-AI Evo has been designed for high-precision counting in high-traffic areas. This small, discreet sensor can be used to measure the success of new infrastructure and track traffic flows in large urban spaces.

Scalable and flexible

Thanks to continuous improvement, functionalities will evolve along with AI and updates will be made remotely. The CITIX-AI Evo is a scalable, future-proof, and flexible solution.

Easy to install and maintain

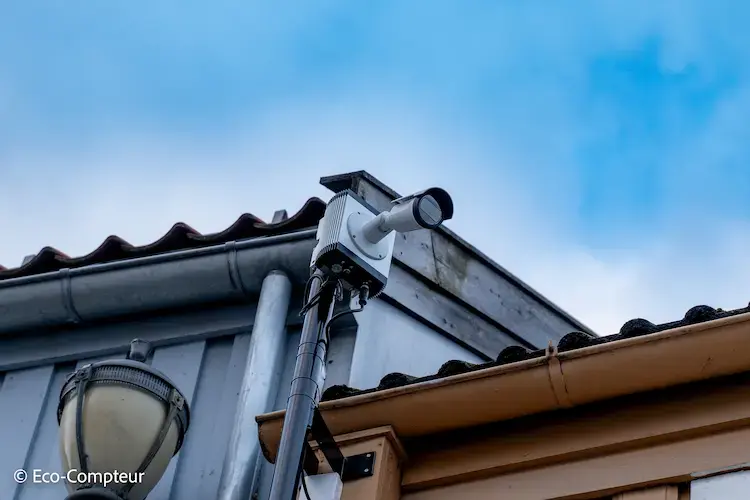

The recommended installation height of the CITIX-AI Evo is 7 meters, with an optimal zone width of 15 meters. Depending on needs, the width of the zone can reach 25 meters for non-motorized traffic and 30 meters for motorized traffic. Installation takes less than an hour, and the product can be maintained remotely.

Specifications
+
Dimensions 173.9 mm x 217.3 mm x 362.6 mm (dimensions with 60° camera angle)
Weight 4.25 kg
Working temperature -25°C to +50°C
Waterproofing IP 66
Range Up to 30 meters



Contact us to get the specification sheet

Frequently asked questions

How do I produce an annual traffic report?

Our Eco-Visio data analysis platform has been designed to be as ergonomic as possible, enabling you to easily edit any type of data report.

However, if you'd like further advice, we offer webinars on specific topics such as report editing. Contact us to find out more!

How do I keep my counter in good working order?

An occasional visit to the counting site allows you to check that everything is in place, or that any work has not affected the installation.

Our Eco-Visio software also enables you to monitor data remotely and check the remaining charge on your batteries.

How do I know if my counter is properly installed?

Our Eco-Link Evo mobile application lets you test your counter. Don't hesitate to call our support team to check that everything is working properly.

Can't find the answer to your question? Don't hesitate to ask us directly!
